Braca IV Down River

DOWN RIVER MODEL

5 355
  • braca_iv

Brača IV Down River is a result of advanced technology, a proprietary blend of composite materials, and was designed with the adventure paddler in mind. It is available with hard and soft shaft construction options.

The edge of the blade is reinforced with an aluminium and titanium layer that makes it highly impact resistant in extreme downriver conditions.

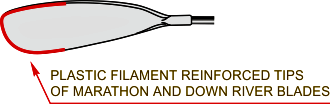

Marathon/Down River Blade with Kevlar/Titanium Tip
Adjustable Shaft System
    braca_adj_system_metal
Shaft Stiffness Measurement Process
Shaft Stiffness Measurement

All Brača IV Down River paddles are available with a fixed shaft or a Metal Adjustable Shaft System. This allows elegant adjustment of overall paddle length (within 5cm range) and blade angle from 0° to 80° right or left. The system also allows you to disassemble the paddle into two parts for easy transportation.

IMPORTANT!
Always clean your adjustable shaft regularly!
When used in saltwater conditions, clean with freshwater after each use, otherwise disassemble and clean every three days. Store your adjustable paddle disassembled if not used for more than two weeks!
See the maintenance page for details.

Available Options and Technical Parameters:

   BladeShaftCarbon contentTotal
Weight
(g/oz)
Surface area
(cm2/in2)
Length
(cm)
Width
(cm)
Stiffness*
(mm)
Blade
(%)
Shaft
(%)
Brača IV 765
Down River
(old size: max)
765/118.6 50.0 16.8 Hard
2.8-2.9



Soft
3.2-3.5
100 100 650/22.9
Brača IV 735
Down River
(old size: min)
735/113.9 49.5 15.8 100 100 640/22.6
Brača IV 705
Down River
(old size: s-min)
705/109.3 49.0 15.3 100 100 620/21.9
Brača IV 635
Down River
(old size: xs-min)
635/98.4 45.3 15.1 100 100 600/21.2

* Recommended stiffness. We recommend stiffer shafts for bigger blades but any combination is possible.

Download the latest full Brača Sport Paddles Catalogue 2017
